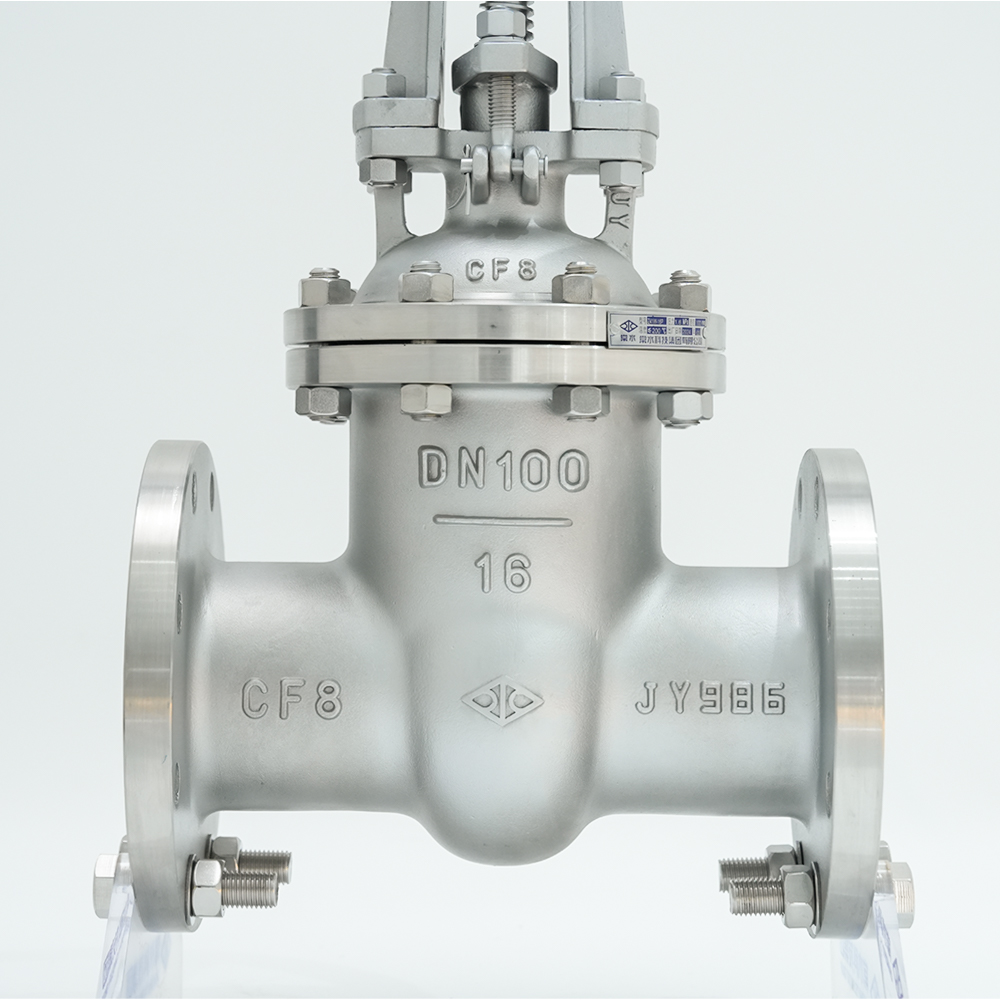

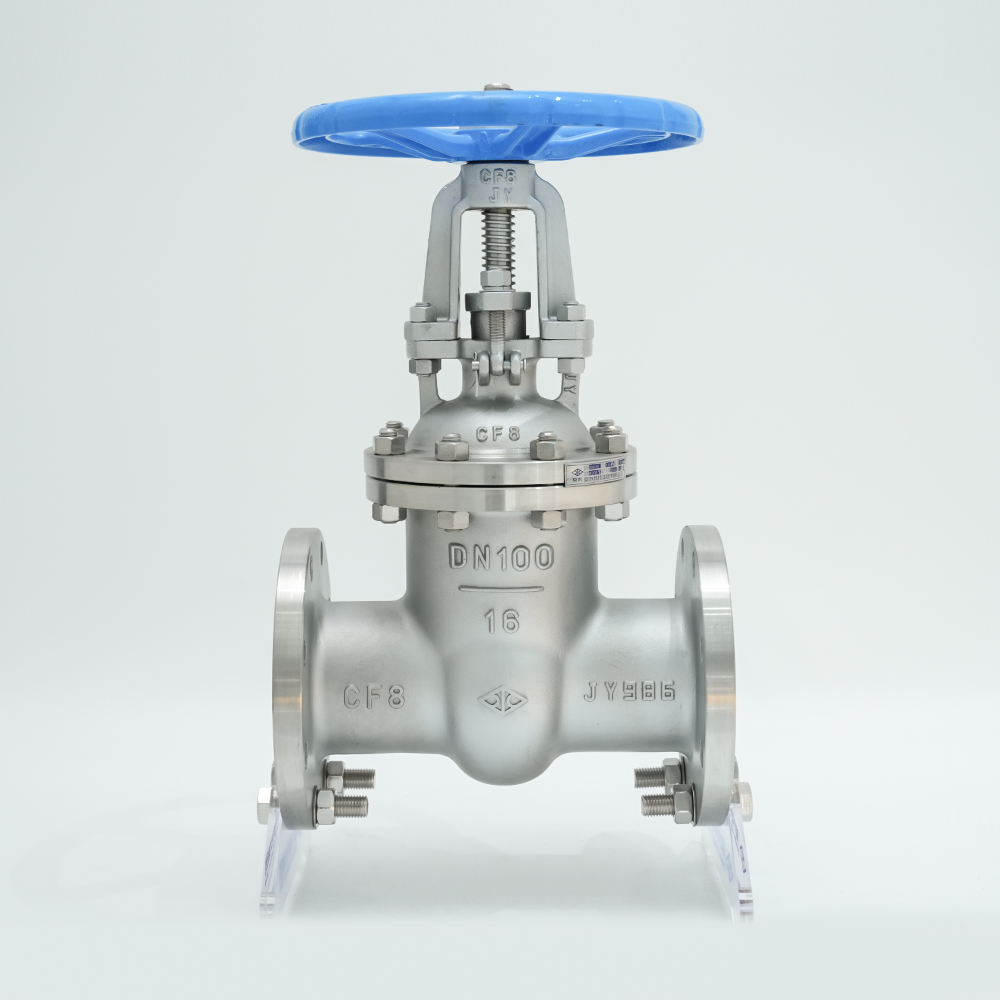

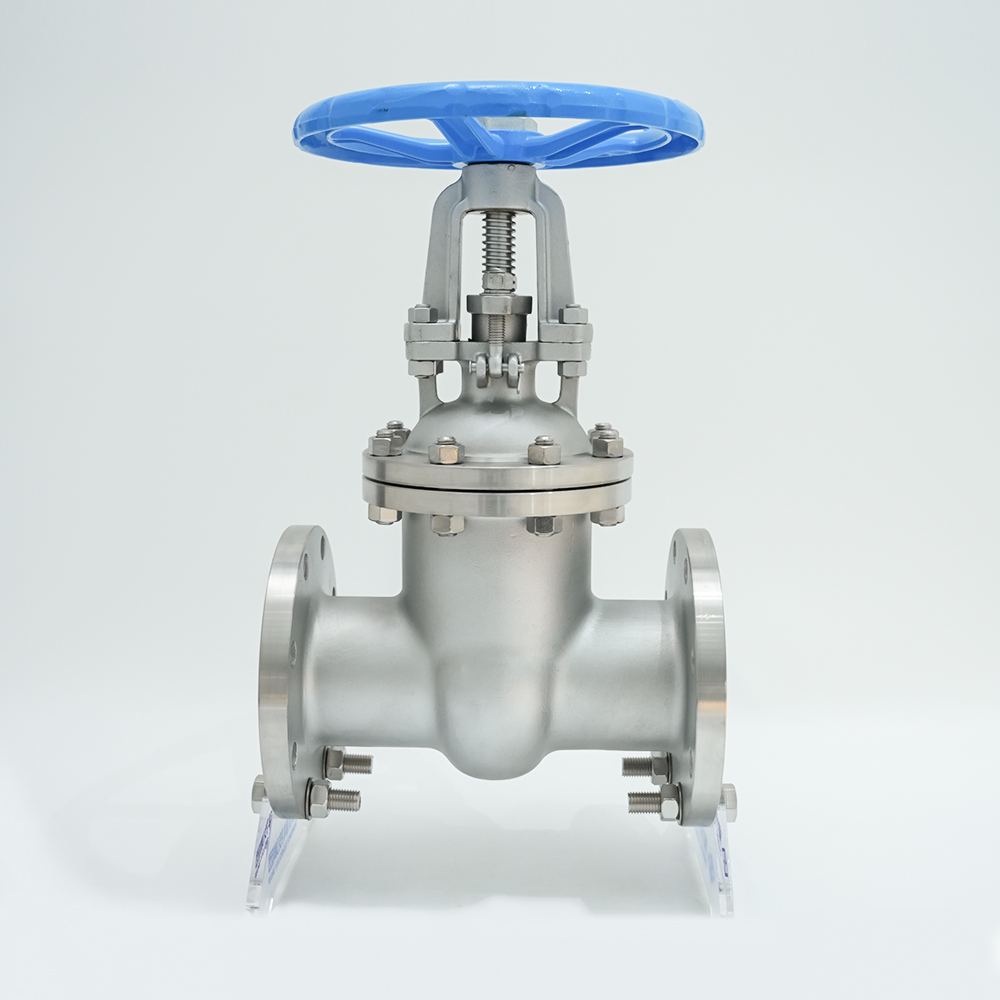

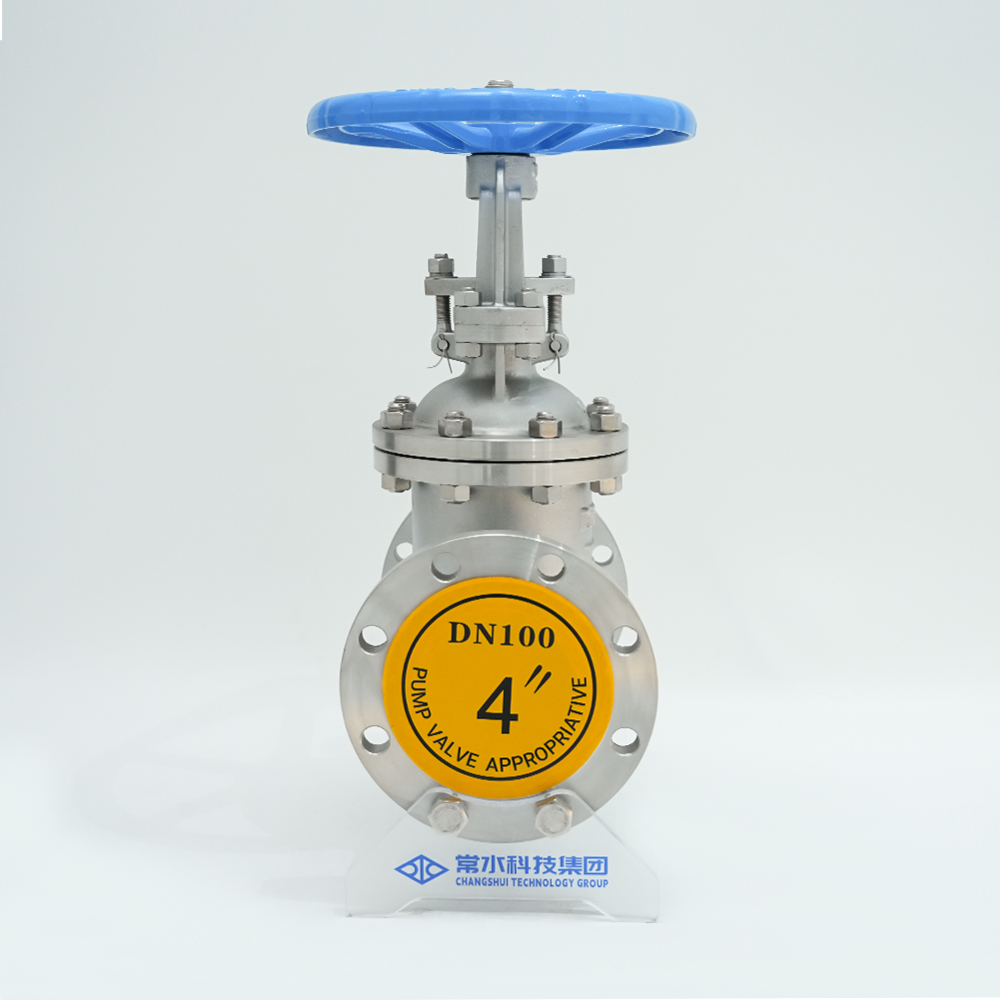

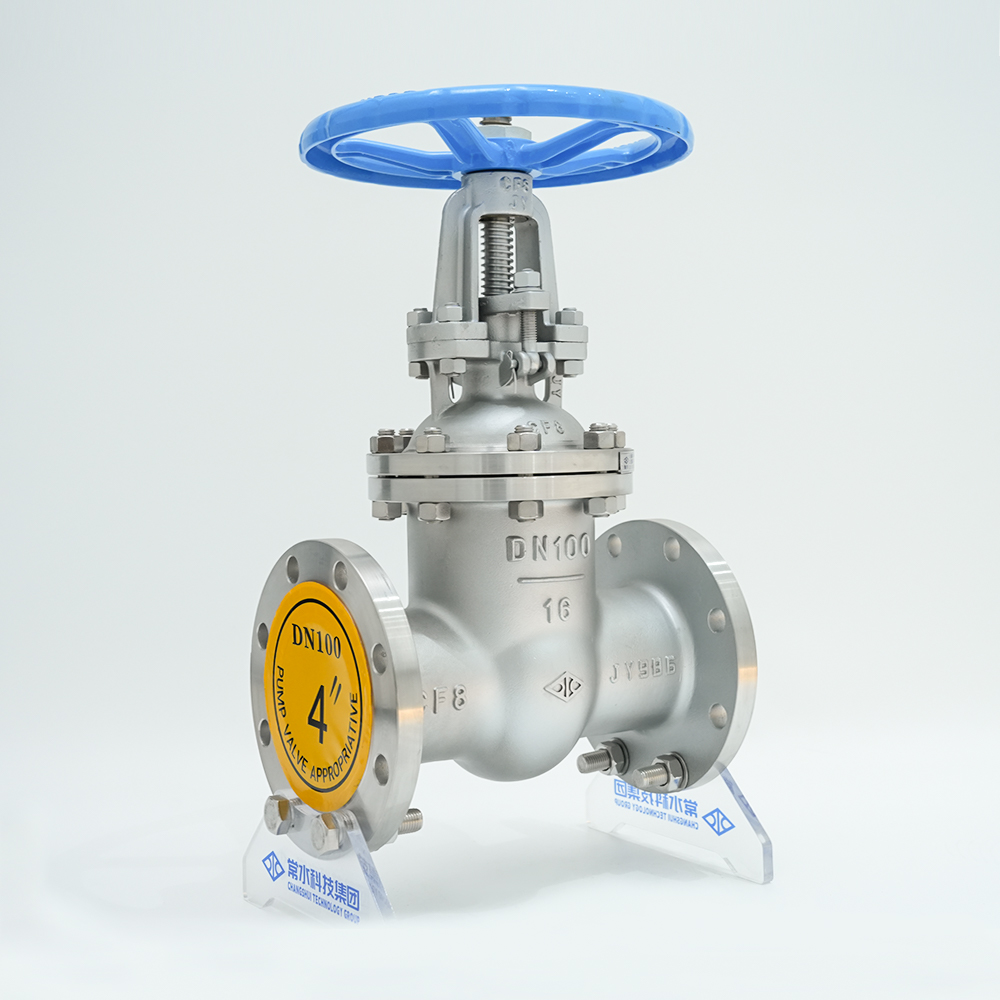

Hindi kinakalawang na asero flange gate valve z41w-16p Suppliers, OEM/ODM Company

Materyal ng katawan	Hindi kinakalawang na asero 304
Modelo	Z41W-16P
Pagtukoy	DN15-600
Nominal pressure	1.0/1.6/2.5/4.0/6.4/10MPa
Temperatura ng pagpapatakbo	0-80 ° C.
Naaangkop na media	Tubig
Mga Pamantayan sa Disenyo	GB/12234 $

Mga bentahe at katangian ng istruktura

1. Natugunan ang mga kinakailangan sa domestic at dayuhang advanced na pamantayan, maaasahan ang selyo, maayos ang pagganap, guwapo ang hitsura.
2. Ang plate ng damper at ang balbula ng pag-iimpake ng balbula ay masyadong patayo (satellite) na may haluang metal na base-base na built-up na hinang o ang kagawaran ang base ng cobalt base na nakabuo ng built-up na hinang upang maging, magsuot-resisting, thermostable, ani-corrosive, ang pagganap ng anti-abrasion ay mabuti, at ang buhay ng serbisyo ay mahaba.
3. Gamit ang wedge-type na nababaluktot na istraktura ng gate, daluyan at malaking caliber set bearings, lumipat ang kakayahang umangkop, bukas at madaling isara.
4. Stem quenched at ang paggamot ng nitrogen, na may mahusay na pagtutol ng kaagnasan, paglaban sa gasgas, at paglaban sa pagsusuot.
5. Maaaring magamit gamit ang iba't ibang mga karaniwang pipe flanges at flange sealing na mga uri ng ibabaw upang matugunan ang iba't ibang mga pangangailangan ng proyekto at mga kinakailangan ng gumagamit.
6. Valve Body Materials, Variety, Packing, at Gasket ay maaaring batay sa aktwal na mga kondisyon sa pagtatrabaho o hiniling ng gumagamit ang isang makatwirang pagpipilian ay maaaring mailapat sa lahat ng mga uri ng presyon, temperatura, at daluyan na mga kondisyon.

Mga pamantayan at kaugalian

Disenyo at paggawa	Haba ng istraktura	Rating ng presyon ng temperatura	Koneksyon Flange	Pagsubok at inspeksyon
GB 12234	GB 12221	GB/T 12224	JB/T 79.1-2-94 GB 9113-2009 Hg 20592 ~ 20635	JB/T 9092-1999 GB 13927-2005

Parameter ng pagganap

Hindi.	Pangalan ng Proyekto	Pangalan ng Proyekto
Hindi.	Pangalan ng Proyekto	PN16	PN25	PN40	PN64	PN100	PN160
1	Nominal Pressure PN (MPA)	1.6	2.5	4.0	6.4	10	16
2	Presyon ng Pagsubok sa Lakas ng Shell (MPA)	1.5 beses ang nominal na presyon sa temperatura ng silid
3	High-Pressure Sealing Test Pressure (MPA)	1.1Times ang nominal na presyon sa temperatura ng silid
4	Operating pressure sa temperatura ng silid (MPA)	Ayon sa rating ng temperatura ng presyon ng GB/T 12224

Pangunahing sangkap na materyal

Pangalan	Materyal
Katawan/Bonnet	CF8	CF3	CF8M	CF3M	WCB	LCB	WC6	WC9	C5
Wedge	CF8	CF3	CF8M	CF3M	WCB	LCB	WC6	WC9	C5
Stem	F304	F304L	F316	F316L	2CR13	F304	F304	F304	F304
Stem nut	Tanso ng aluminyo
Pag -iimpake	PTFE/Flexible Grapayt				Grapayt
Gasket	Ptfe/metal wrap mat				Grapayt
Glandula	CF8	CF3	CF8M	CF3M	WCB	LCB	WC6	WC9	C5
Bolt	Hindi kinakalawang na asero				35crmoa
Nut	Hindi kinakalawang na asero				45、35crmoa
Handwheel	Cast Steel

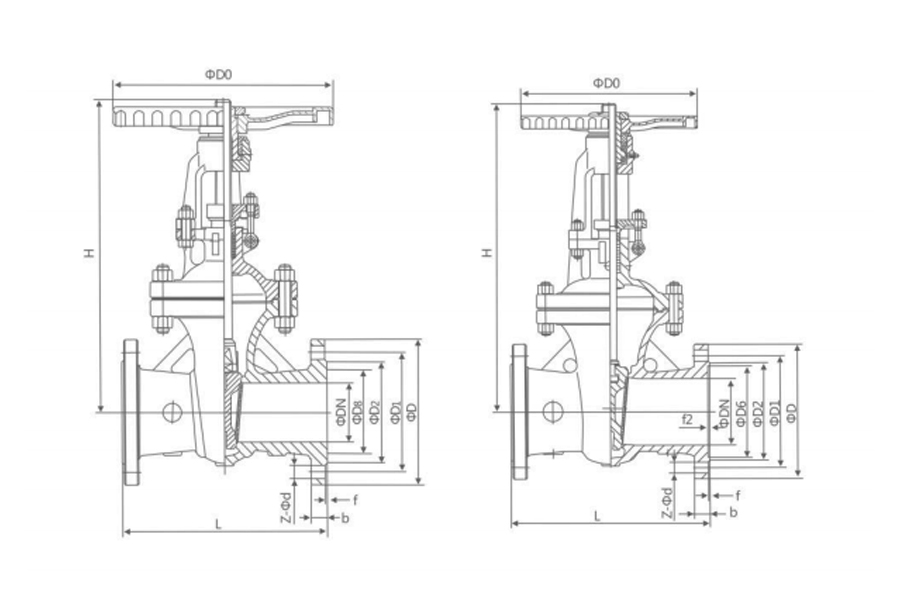

Pangunahing panlabas at sukat ng koneksyon

PN (MPA)	DN (mm)	Laki (mm)								De -koryenteng aparato modelooo	Nominal metalikang kuwintas	Pader Kapal	Timbang (Kg)
PN (MPA)	DN (mm)	L	D	D1	D2	B-f	Z-φD	H	D0	De -koryenteng aparato modelooo	Nominal metalikang kuwintas	Pader Kapal	Timbang (Kg)
1.0	15	130	95	65	45	12-2	4-φ14	160	100
	20	150	105	75	55	14-2	4-φ14	165	100
	25	160	115	85	65	14-2	4-φ14	200	125
	32	180	135	100	78	16-2	4-φ18	240	125
	40	165	145	110	85	16-3	4-φ18	245	135	DZW5A	50
	50	180	160	125	100	16-3	4-φ18	286	180	DZW10A	100
	65	195	180	145	120	18-3	4-φ18	320	180	DZW10A	100
	80	210	195	160	135	18-3	4-φ18	373	200	DZW15A	150
	100	230	215	180	155	20-3	8-φ18	428	200	DZW15A	150
	125	255	245	210	185	22-3	8-φ18	513	240	DZW20A	200
	150	280	280	240	210	22-3	8-φ23	582	240	DZW30A	300
	200	330	335	295	265	22-3	8-φ23	730	320	DZW30A	300
	250	380	390	350	320	24-3	12-φ23	897	320	DZW30A	450
	300	420	440	400	368	26-4	12-φ23	1032	400	DZW45A	600
	350	450	500	460	428	26-4	16-φ23	1170	400	DZW45A	900
	400	480	565	515	482	26-4	16-φ25	1330	500	DZW60A	1200
	450	510	615	565	532	26-4	20-φ25	1460	500	DZW90A	1800
	500	540	670	620	585	28-4	20-φ25	1650	500	DZW120A	2500
	600	600	780	725	685	28-5	20-φ30	183	600	DZW250 $ A	2500
	700	660	895	840	800	30-5	24-φ30	2120	700	DZW305A	3500
	800	730	1010	950	905	32-5	24-φ34	2420	800	DZW500A	5000
	900	800	1110	1050	1005	34-5	28-φ34	2750	850	DZW800	8000
	1000	850	1220	1160	1115	34-5	28-φ34	3130	900	DZW1000	10000
1.6	15	130	95	65	45	16-2	4-φ14	170	120			6.4	5
	20	150	105	75	55	18-2	4-φ14	190	140			6.4	8
	25	160	115	85	65	18-2	4-φ14	205	160			6.4	11
	32	180	140	100	78	18-2	4-φ18	270	180			6.4	13
	40	200	150	110	85	18-3	4-φ18	290	200	DZW10A	100	6.4	15
	50	250	165	125	100	18-3	4-φ18	310	240	DZW10A	100	9.5	21
	65	265/270	185	145	120	18-3	8-φ18	373	240	DZW15A	150	11	28
	80	280	200	160	135	20-3	8-φ18	435	280	DZW20A	200	11.5	35
	100	300	220	180	155	20-3	8-φ18	445	300	DZW20A	200	12.5	45
	125	325	250	210	185	22-3	8-φ18	570	320	DZW30A	300	13	65
	150	350	285	240	210	22-3	8-φ22	630	360	DZW30A	300	13.5	80
	200	400	340	295	265	24-3	12-φ22	735	400	DZW30A	300	15	146
	250	450	405	355	320	26-3	12-φ26	969	450	DZW45A	450	16	215
	300	500	460	410	375	28-4	12-φ26	976	580	DZW60A	600	18	308
	350	550	520	470	435	30-4	16-φ26	1120	640	DZW90	900	19	400
	400	600	580	525	485	32-4	16-φ30	1452	640	DZW120	1200	21	452
	450	650	640	585	545	40-4	20-φ30	1541	720	DZW180	1800	21.5	726
	500	700	715	650	608	44-4	20-φ33	1880	720	DZW250	2500	22	995
	600	800	840	770	718	54-5	20-φ36	1874	800	DZW250	2500	25	1370
	700	900	910	840	788	42-5	24-φ36	2083	800	DZW350	3500	27	1650
	800	1000	1025	950	898	42-5	24-φ39	2400	850	DZW500	5000	30	2100
	900	1100	1125	1050	998	44-5	28-φ39	2950	1000	DZW800	8000	30	3120
	1000	1200	1255	1170	1110	46-5	28-φ42	3245	1000	DZW1000	10000	30	3950

Pangunahing panlabas at sukat ng koneksyon

PN (MPA)	DN (mm)	Laki (mm)								De -koryenteng aparato modelooo	Nominal metalikang kuwintas	Pader Kapal	Timbang (Kg)
		L	D	D1	D2	B-f	Z-φD	H	D0
2.5	15	130	95	65	45	16-2	4-φ14	170	120			6.4	5
	20	150	105	75	55	18-2	4-φ14	190	140			6.4	8
	25	160	115	85	65	18-2	4-φ14	205	160			6.4
	32	180	140	100	78	18-2	4-φ18	270	180			6.4	3
	40	200	150	110	85	18-3	4-φ18	310	200	DZW10A	100	6.4	15
	50	250	165	125	100	20-3	4-φ18	358	240	DZW10A	100	9.5	21
	65	265/270	185	145	120	22-3	8-φ18	373	240	DZW15A	150		30
	80	280	200	160	135	24-3	8-φ18	435	280	DZW20A	200	11.5	37
	100	300	235	190	160	24-3	8-φ22	500	300	DZW20A	200	12.5	49
	125	325	270	220	188	26-3	8-φ26	614	320	DZW30A	300	13	68
	150	350	300	250	218	28-3	8-φ26	674	360	DZW30A	300	13.5	88
	200	400	360	310	278	30-3	12-φ26	811	400	DZW30A	300	15	161
	250	450	425	370	332	32-3	12-φ30	969	450	DZW45A	450	16	236
	300	500	485	430	390	34-4	16-φ30	1145	580	DZW60A	600	18	342
	350	550	555	490	448	38-4	16-φ33	1280	640	DZW90	900	19	438
	400	600	620	550	505	40-4	16-φ36	1452	640	DZW120	1200	21	486
	450	650	670	600	555	46-4	20-φ36	1541	720	DZW180	1800	21.5	763
	500	700	730	660	610	48-4	20-φ36	1676	720	DZW250	2500	22	1080
	600	800	845	770	718	58-5	20-φ39	1874	800	DZW250	2500	25	1470
	700	900	960	875	815	50-5	24-φ42	2083	800	DZW350	3500	27	1750
	800	1000	1085	990	930	54-5	24-φ48	2400	950	DZW500	5000	30	2250
	900	1100	1185	1090	1025	58-5	28-φ48	2950	1000	DZW800	8000	30	3270
	1000	1200	1320	1210	1140	62-5	28-φ55	3245	1000	DZW1000	10000	30	4100

Pangunahing panlabas at sukat ng koneksyon

PN (MPA)	DN (mm)	Laki (mm)										De -koryenteng aparato mode	Nomina metalikang kuwintasNm	Pader Kapal	Timbang (Kg)
		L	D	D1	D2	D6	B-f	f1	Z-φD	H	D0
4.0	15	130	95	65	45	40	16-2	4	4-φ14	135	120			6.4	5
	20	150	105	75	55	51	18-2	4	4-φ14	190	140			6.4	8
	25	160	115	85	65	58	18-2	4	4-φ14	205	160			6.4	11
	32	180	140	100	78	66	18-2	4	4-φ18	270	180			6.4	13
	40	200	150	110	85	76	18-3	4	4-φ18	310	200	DZW10A	100	6.4	15
	50	250	165	125	100	88	20-3	4	4-φ18	371	280	DZW10A	100	10	23
	65	280	185	145	120	110	22-3	4	8-φ18	391	280	DZW15A	150	12	32
	80	310	200	160	135	121	24-3	4	8-φ18	455	320	DZW20A	200	12.5	41
	100	350	235	190	160	150	24-3	4.5	8-φ22	551	360	DZW20A	200	13.5	52
	125	400	270	220	188	176	26-3	4.5	8-φ26	628	400	DZW20A	200	14	75
	150	450	300	250	218	204	28-3	4.5	8-φ26	708	400	DZW30A	300	16	99
	200	550	375	320	282	260	34-3	4.5	12-φ30	885	450	DZW45A	450	17	185
	250	650	450	385	345	313	38-3	4.5	12-φ33	906	560	DZW60A	600	18.5	390
	300	750	515	450	408	364	42-4	4.5	16-φ33	1203	640	DZW90	900	22	417
	350	850	580	510	465	422	46-4	5	16-φ36	1341	640	DZW120	1200	25	495
	400	950	660	585	535	474	50-4	5	6-φ39	1492	720	DZW180	1800	27	715
	500	1150	755	670	612	576	57-4	5	20-φ42	1627		DZW250	2500	30	1773
	600	1350	890	795	730	678	72-5	6	20-φ48	1925		DZW350	3500	32	2370
	700	1450		900	835	768		6		2310		DZW500	5000	35	2640
	800	1650		1030	960	876		6		2600		DZW800	8000	37	3239
6.3	15	170	105	75	55	40	20-2	4	4-φ14	140	100			7.4	10
	20	190	130	90	68	51	22-2	4	4-φ18	140	100			7.9	12
	25	210	140	100	78	58	24-2	4	4-φ18	215	180			7.9	16
	32	230	155	110	82	66	26-2	4	4-φ22	270	180			8.6	20
	40	240	170	125	95	76	28-3	4	4-φ22	345	200	DZW10A	100	9.4	25
	50	250	180	135	105	88	26-3	4	4-φ22	470	200	DZW15A	150	11	36
	65	280	205	160	130	110	26-3	4	8-φ22	520	250	DZW20A	200	13	41
	80	310	215	170	140	121	28-3	4.5	8-φ22	570	300	DZW20A	200	14	48
	100	350	250	200	168	150	30-3	4.5	8-φ26	700	300	DZW30A	300	15	76
	125	400	295	240	202	176	34-3	4.5	8-φ30	780	350	DZW30A	300	15.5	89
	150	450	345	280	240	204	36-3	4.5	8-φ33	850	350	DZW45A	450	18	140
	200	550	415	345	300	260	42-3	4.5	12-φ36	1035	400	DZW60A	600	21	208
	250	650	470	400	352	313	46-3	4.5	12-φ36	1050	560	DZW90	900	23	492
	300	750	530	460	412	364	52-4	4.5	16-φ36	1470	640	DZW120	1200	25	703
	350	850	600	525	475	422	56-4	5	16-φ39	1718	700	DZW180	1800	28	945
	400	950	670	585	525	474	60-4	5	16-φ42	1885	750	DZW250	2500	30	1250
	500	1150		705	640	576		5		2410	850	DZW350	3500	35	2088
	600	1350		820	750	678		6		2895	1000	DZW500	5000	38	2850

Pangunahing panlabas at sukat ng koneksyon

PN (MPA)	DN (mm)	Laki (mm)										De -koryenteng aparato modelooo	Nominal metalikang kuwintas	Pader Kapal	Timbang (Kg)
PN (MPA)	DN (mm)	L	D	D1	D2	D8	D6	b	Z-φD	H	D0	De -koryenteng aparato modelooo	Nominal metalikang kuwintas	Pader Kapal	Timbang (Kg)
10.0	15	170	105	75	55	35	40	20	4-φ14	140	120			7.9	10
	20	190	130	90	68	45	51	22	4-φ18	140	120			7.9	12
	25	210	140	100	78	50	58	24	4-φ18	310	200			7.9	16
	32	230	155	110	82	65	66	26	4-φ22	320	220			8.6	21
	40	240	170	125	95	75	76	28	4-φ22	360	240	DZW15A	150	9.4	26
	50	250	190	145	112	85	88	30	4-φ26	490	360	DZW20A	200	13	42
	65	280	220	170	138	110	110	34	8-φ26	540	400	DZW20A	200	15	49
	80	310	230	180	148	115	121	36	8-φ26	572	400	DZW30A	300	18	80
	100	350	265	210	172	145	150	40	8-φ30	573	400	DZW45A	450	20	95
	125	400	315	250	210	175	176	40	8-φ33	744	560	DZW60A	600	22	126
	150	450	355	290	250	205	204	44	12-φ33	800	560	DZW90	900	28	192
	200	550	430	360	312	265	260		12-φ36	800	560	DZW120	1200	30	260
	250	650	505	430	382	320	313	60	12-φ39	1050	640	DZW180	1800	32	595
	300	750	585	500	442	375	364	68	16-φ42	1200	720	DZW250	2500	35	810
	350	850	655	560	498	420	422	74	16-φ48	1430	800	DZW350	3500	40	1310
	400	950	715	620	558	480	474	78	16-φ48	1743	850	DZW500	5000	43	1668
	500	1150		724	635	584	576			2055	900	DZW800	8000	50	2910
16.0	15	170	105	75	52	35	40	20	4-φ14	230	200			12.7	12
	20	190	130	90	62	45	51	24	4-φ18	260	200			12.7	16
	25	210	140	100	72	50	58	24	4-φ18	280	280			12.7	18
	32	230	155	115	85	65	66	28	4-φ22	312	320			14.2	28
	40	260	170	125	92	75	76	28	4-φ22	350	320	DZW15A	150	18	31
	50	300	195	165	132	95	88	30	4-φ26	512	360	DZW20A	200	19	62
	65	340	220	190	152	110	110	34	8-φ26	560	360	DZW30A	300	22	75
	80	390	230	205	168	130	121	36	8-φ26	585	400	DZW30A	450	23	141
	100	450	265	240	200	160	150	40	8-φ30	631	450	DZW45A	600	26	185
	125	525	315	285	238	190	176	44	8-φ33	723	560	DZW60A	900	30	320
	150	600	355	318	270	205	204	50	12-φ33	820	640	DZW90	1200	35	428
	200	750	430	400	345	275	260	60	12-φ36	990	720	DZW120	1800	40	755
	250	838	515	485	425	330	313	68	12-φ42	1120	800	DZW180	2500	42	1156
	300	965	585	570	510	380	364	78	12-φ42	1300	850	DZW250	1500	48	1670
